Roll forged HSS metal drill bit - Extra short - Cylindrical shank

Reference : 2020051

Removed product

Stock updated daily at 2:00 am

See all sizes

Presentation

Benefits

Drilling of ordinary steels. Occasional use.

  • 118° tip
  • Conventional point
  • Cylindrical shank
  • 30° type N flute
  • Traitement STEAM

MACHINE

  • Machine conventionnelle Machine conventionnelle
  • Drill press Drill press
  • Corded Drill Corded Drill
  • Cordless Screwdriver Cordless Screwdriver
  • Pneumatic drill Pneumatic drill

Geometry

  • High speed steel (tool material) High speed steel (tool material)
  • Steam homo surface treatment Steam homo surface treatment
  • DIN 1897 norm DIN 1897 norm
  • Extra short series 2xØ Extra short series 2xØ
  • Taper flank sharpening Taper flank sharpening
  • Angle at top of tool Angle at top of tool
  • Geometry of the flute Geometry of the flute
  • Tolerance Tolerance
  • Helix angle Helix angle
  • Cylindrical attachment Cylindrical attachment

Application

  • P1-Aciers non alliés P1-Aciers non alliés

Sector of Activity

Properties

  • 118° tip: 118° tip angle for the sharpening of the drill bit.

  • Conventional grinding: with a standard point sharpening

  • Cylindrical shank: the diameter of the shank is equal to the diameter of the tip.

  • 30° type N flute: normal flute profile with a 35° helix angle.

  • Traitement STEAM : Traitement d'oxydation à la vapeur.

+ List all products 2020051.

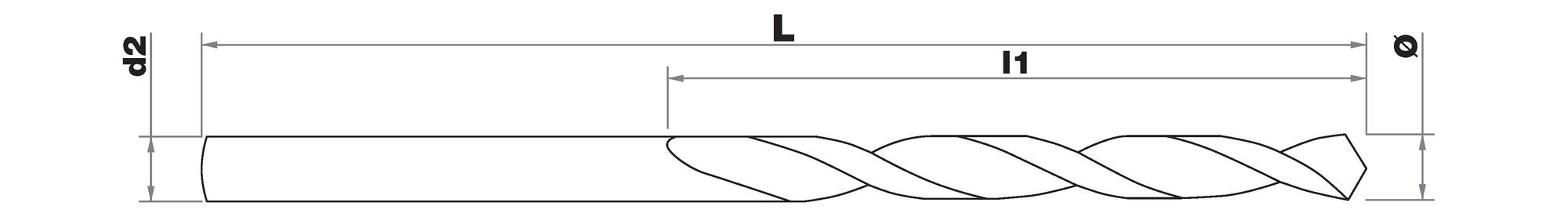

Reference Drill diameter in mm Shank diameter Total lenght Trimmed length Multiple Sale Quantity PCB M3
90200510200 2 2 38 12 1 10
90200510300 3 3 46 16 1 10
90200510320 3.2 3.2 49 18 1 10
90200510330 3.3 3.3 49 18 1 10
90200510350 3.5 3.5 52 20 1 10
90200510400 4 4 55 22 1 10
90200510420 4.2 4.2 55 22 1 10
90200510450 4.5 4.5 58 24 1 10
90200510500 5 5 62 26 1 10
90200510520 5.2 5.2 62 26 1 10
90200510550 5.5 5.5 66 28 1 10
90200510600 6 6 66 28 1 10
90200510650 6.5 6.5 70 31 1 10
90200510750 7.5 7.5 74 34 1 10
90200510900 9 9 84 40 1 10
90200511000 10 10 89 43 1 10
